As much as I try to not talk continually about the gear, it seems that I always end up talking shop anyway. So, here I go again talking about another project. Having built two vertical pano cameras for Susan I promised myself no more camera building. Well, I do not seem to listen to myself all that well. I have this thing about big negatives. I have chosen the 8×10 to be my every day format. But there are times that I envision something just a little larger. In reality, my favorite format is 11×14, but the camera I have been using weighing in at about 24 pounds limits its usability. The idea of a more user friendly 11×14 has been rattling around in my head for some time. I spent a lot of time looking at various camera designs with particular interest in the lighter, more back friendly, cameras.
The nice thing about building your own, is you can pick and choose the features and design that best suits you. This is exactly what I did, and I ended up with a camera that is a conglomeration of designs.

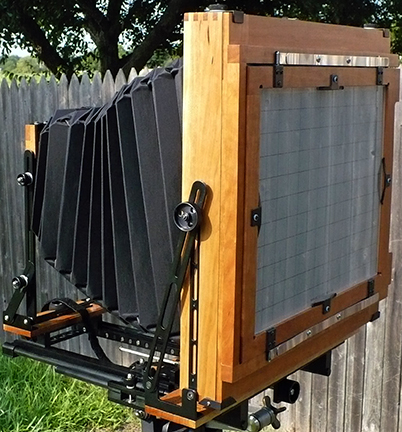

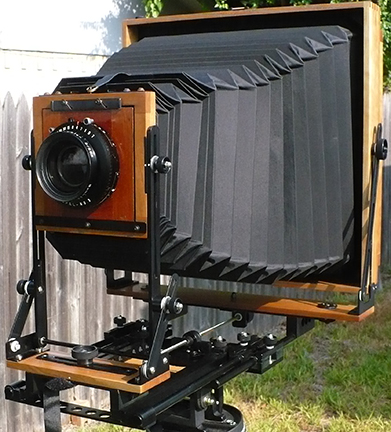

The end result is what I call the Ultra-Light 11×14. Here are the specs;
FORMAT — 11X14
FILM BACK — Horizontal/Vertical
BELLOWS — Max: 36.0” Min: 5.5”
FRONT SWING — Limited by Bellows
FRONT SHIFT — +/- 2.0”
FRONT RISE — +/- 3.0”
FRONT TILT AXIS — Limited by Bellows
FRONT TILT BASE — Forward: 45º Back: 90º
REAR TILT — Forward: Limited by Bellows Rear: 35º
REAR SWING — +/- 10º
GROUND GLASS — Acrylic
WOOD — Cherry
FRAME — Composite & Aluminum
FOLDED — 18” x 19” x 6”
WEIGHT — 13.5 lbs
